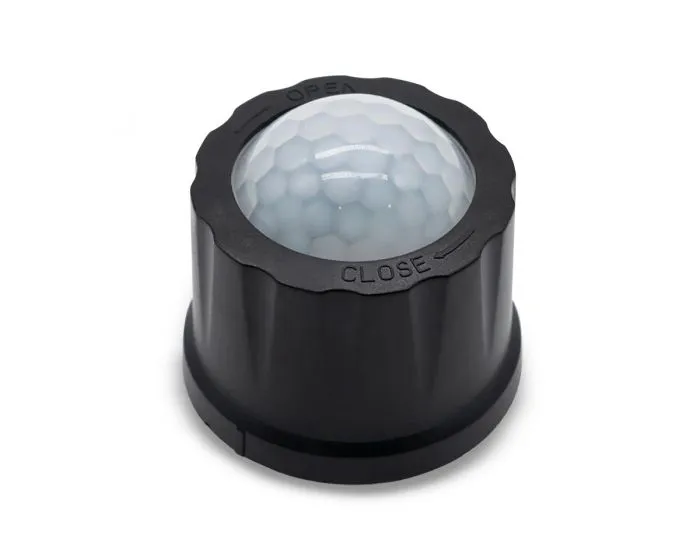

Collingwood HBPIR Area Bay PIR Motion Sensor with Daylight Threshold Switch

Passive infra-red (PIR) motion sensor with daylight threshold switch for use with the Area Bay. IP65 Rated.

Quick and easy to install, the sensor plugs into the centre of the luminaire using the Zhaga socket for a typical installation height 8-13m.

Hold Time:

• Default is 5 seconds.
• Options - 30s/1min/3min/5min/10min/20min/30min.

Stand-by Dimming Level

• Default is 10%.
• Options - 20%/30%/50%.

Daylight Threshold

• Default is 'disable'.
• Options
• 2Lux/10Lux/30Lux/50lux.
• 120Lux/200Lux/250Lux.
• 300Lux/350Lux/400Lux.

Stand-by Period

• Default is 0 seconds.
• Options - 10s/30s/1min/5min/10min/30min

• Plugs into the centre of the Area Bay luminaire using the Zhaga socket
• Typical installation height 8-13m
• Hold time Default is 5 seconds Options - 30s/1min/3min/5min/10min/20min/30min
• Stand-by dimming level Default is 10% Options - 20%/30%/50%
• Stand-by period Default is 0 seconds Options - 10s/30s/1min/5min/10min/30min
• Daylight threshold Default is 'disable' Options - 2Lux/10Lux/30Lux/50lux 120Lux/200Lux/250Lux 300Lux/350Lux/400Lux
