Pan Depth: 8”
Pan Capacity: 4 Quarts (3.8 Liters)
System Capacity: 5 Quarts (4.7 Liters)
Stroke Clearance: 4.125" (With Steel Rods, Check Crank Scraper Before Final Install)

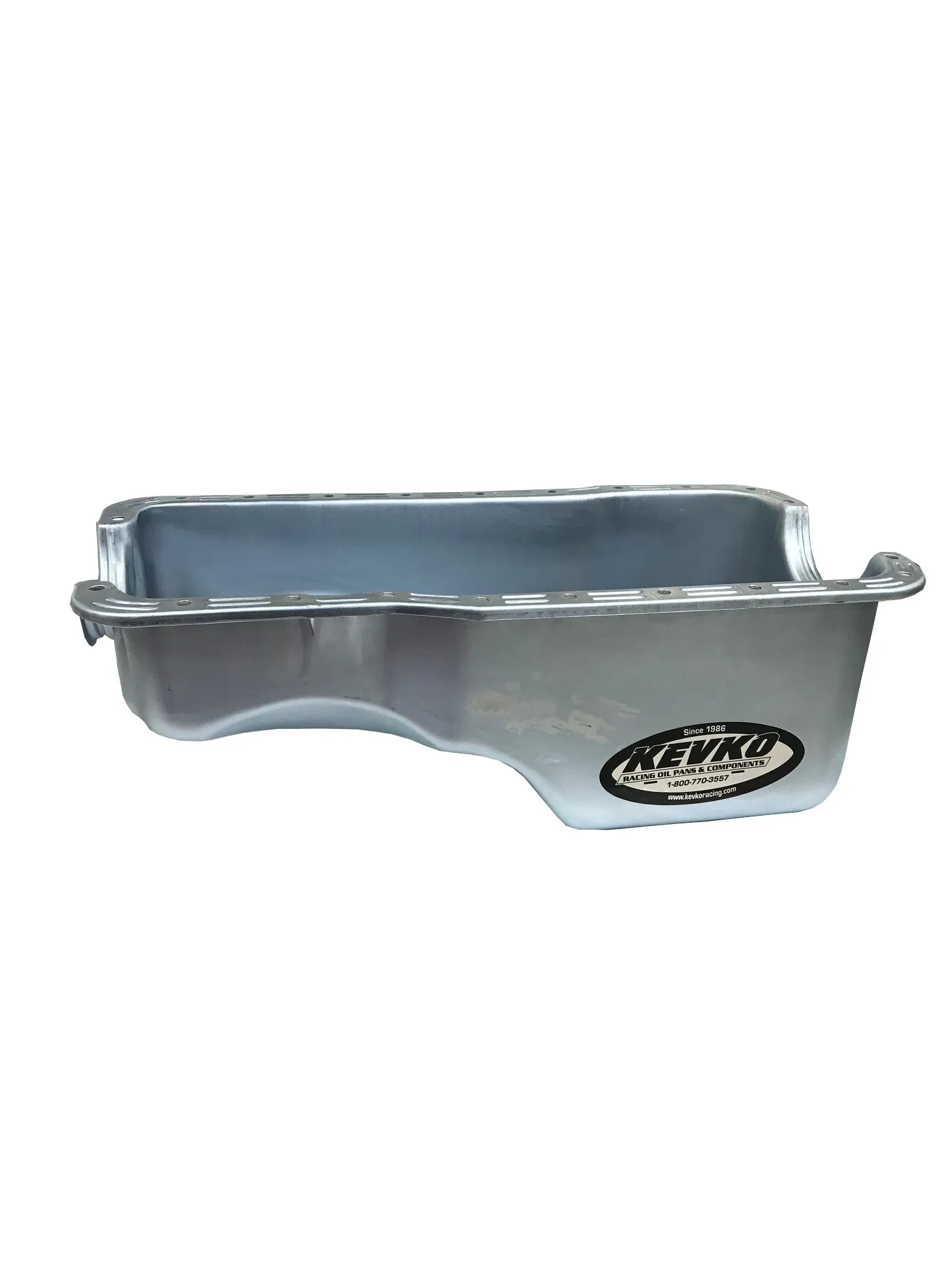

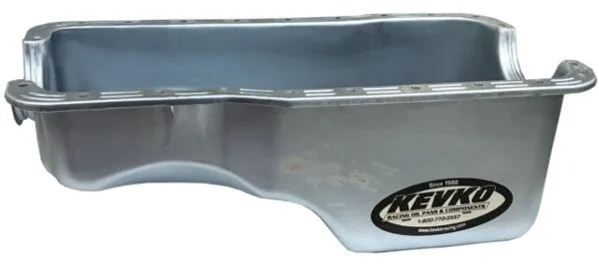

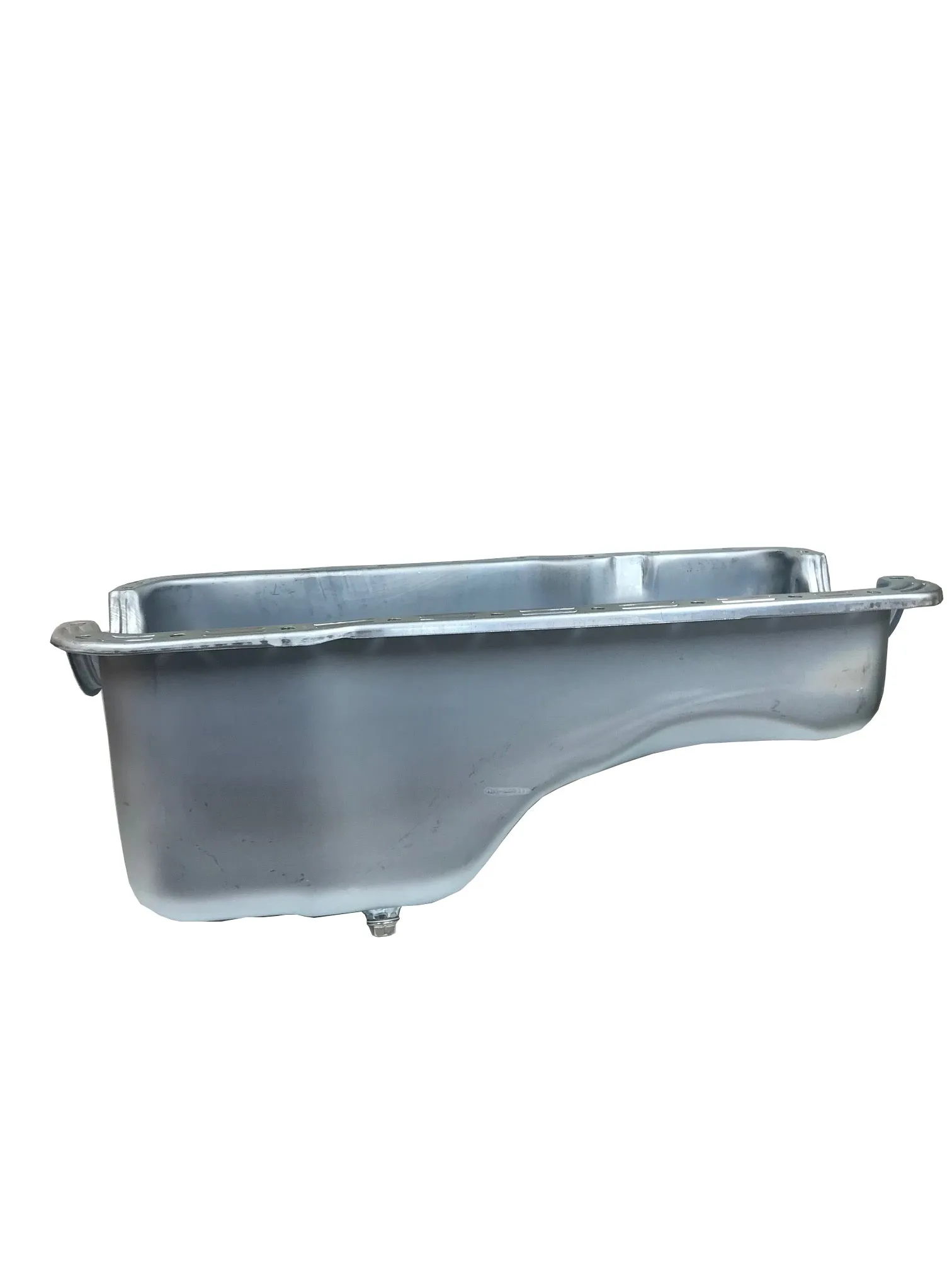

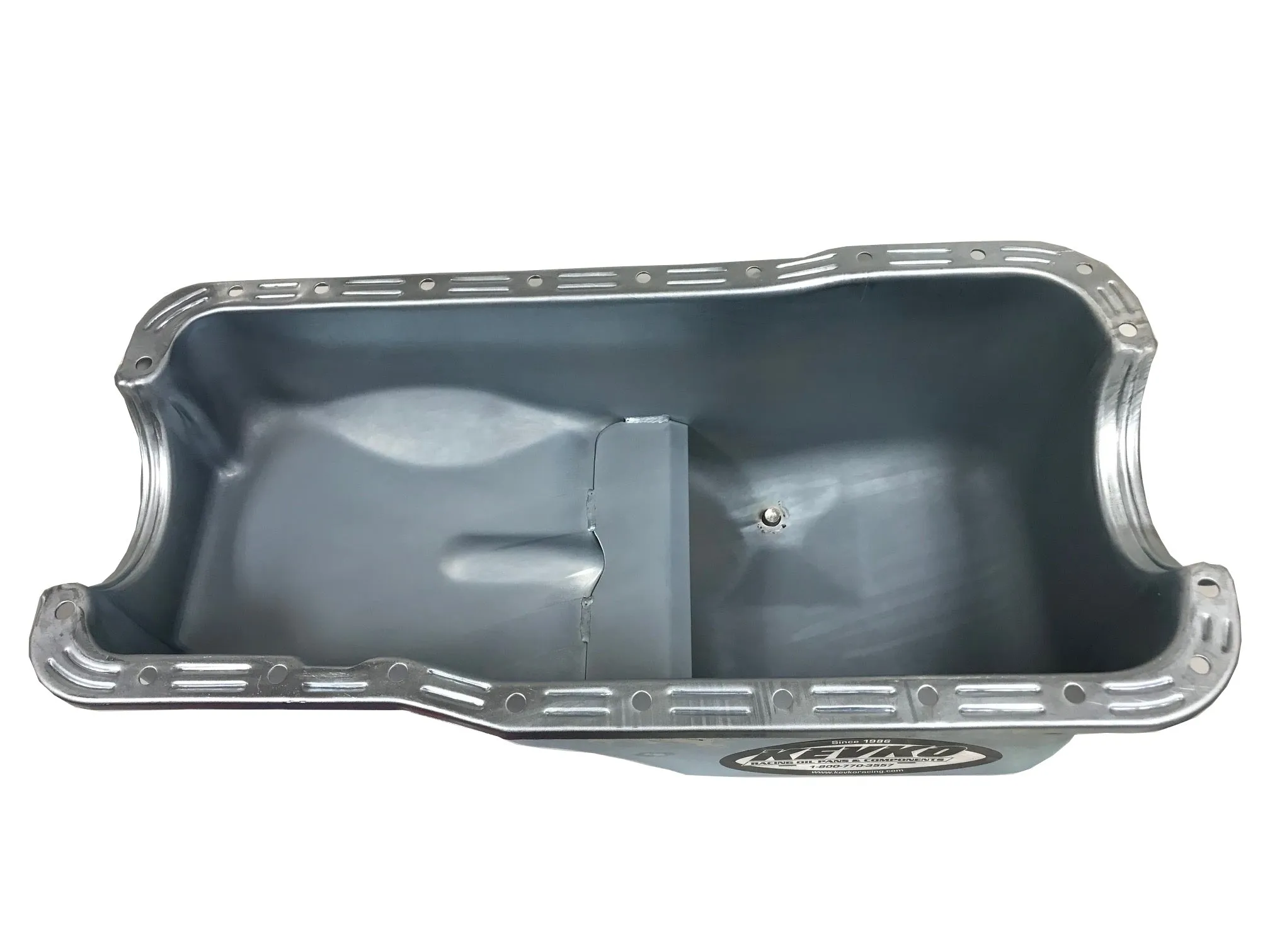

Description: Stock appearing oil pan. Same Capacity as OE. This is built from a new stamping, zinc plated, and fabricated baffles for the best oil control. 2 bolt rear main cap blocks only. Will not fit 4 bolt rear main caps.
Sold as Pan only. Pickup tube and Accessories listed below may be required.
351W Accessories
| Part Number | Description | |
| 351W Pickup Tube, works with Standard and High Volume Pumps | ||
| Standard Volume Pump | ||
| High Volume Pump | ||
| Intermediate Oil Pump Drive Shaft | ||
| Melling Select Performance Oil Pump | ||
| Fel-Pro Multi-Piece Gasket | ||
| Fel-Pro 1-Piece Gasket |
302 Accessories
| Part Number | Description | |
| 302 Pickup Tube-Works with Standard and High Volume Pumps | ||
| Standard Volume Oil Pump | ||
| High Volume Oil Pump | ||
| Intermediate Oil Pump Drive Shaft | ||
| Melling Select Performance Oil Pump | ||
| Fel-Pro Multi-Piece Gasket | ||
| 221-302 Ford 1-Piece Gasket |
Miscellaneous Accessories
| Part Number | Description | |
| Standard Kevko 1/2-20 Universal Dipstick | ||
| Lo-Kar Polished 1/2-20 Locking Top Universal Dipstick | ||
| Kevko Polished Stainless Steel 1/2-20 Universal Dipstick | ||
| Standard Drain Plug | ||
| Magnetic Drain Plug | ||
| Ford Motor Mounts | ||
| Lift Plate |
