Features

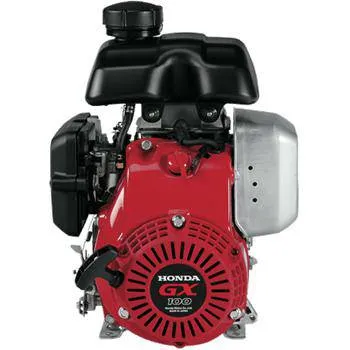

- The GX100 engine is frequently used by customers in commercial lawn and garden equipment.
- Engine is suitable for a wide range of heavy-duty applications, construction equipment, portable generators, pumps and other industrial applications.
- Precision Camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency.
- It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer for where you need it.
- GX100 incorporates a high compression ratio for better fuel efficiency.
Specs
| MODEL | GX100UTQA2 |
| TYPE | 4-stroke, overhead valve, single-cylinder, horizontal shaft |
| BORE & STROKE | 56 x 40mm |
| DISPLACEMENT | 98cm3 |
| COMPRESSION RATIO | 8.5:1 |
| NET POWER | 2.1kW (2.8HP) at 3,600rpm |
| CONTINUOUS RATED POWER | 1.7kW (2.3HP) at 3,600rpm |
| MAXIMUM NET TORQUE | 5.7 Nm at 2,500 pm |
| IGNITION SYSTEM | Transistorised magneto ignition |
| STARTING SYSTEM | Recoil Starter |
| COOLING SYSTEM | Forced-air |
| PTO SHAFT ROTATION | Counter-clockwise (from P.T.O. side) |
| FUEL CONSUMPTION AT RATED POWER | 0.88 L/h at 3,600rpm |
| RECOMMENDED FUEL | Unleaded |
| RECOMMENDED OIL | 10W/30 API SG |
| OIL CAPACITY | 0.40l |
| FUEL TANK CAPACITY | 0.77l |
| DIMENSIONS | 295 x 304 x 402 mm |
| DRY WEIGHT | 10.63kg |
